| Quantity: | |
|---|---|

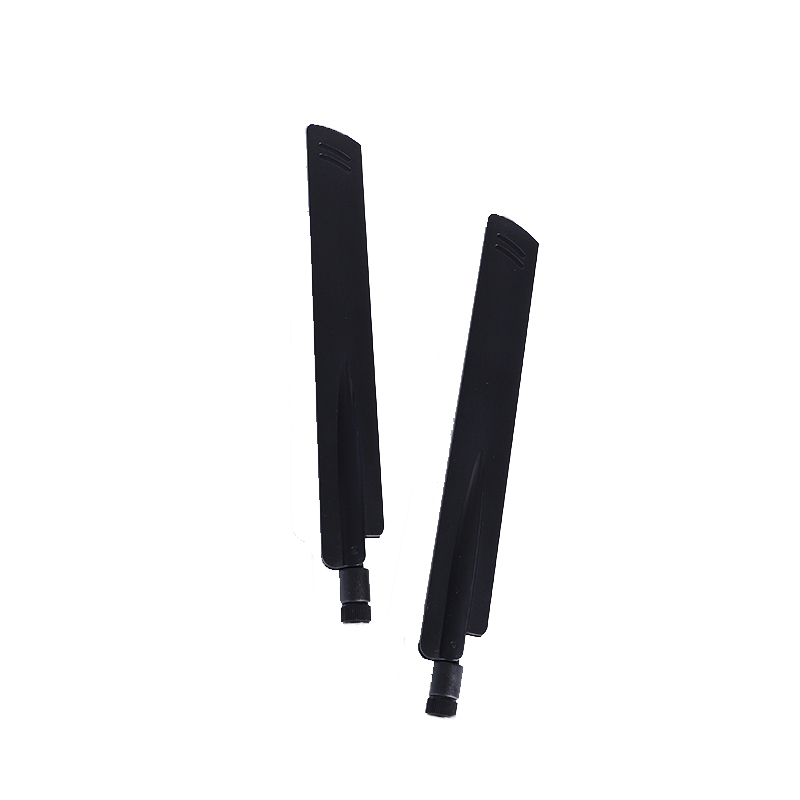

Product name： | 5g full frequency rubber antenna 5g module antenna high gain omnidirectional smart home securi |
Brand Name： | Tech Chant |
Frequency Range： | 698-960/1710-2700/3300-3800/5125-5925MHz |
VSWR： | ≤2.5 |
Gain： | 4BD |
Impedance： | 50Ω |
Polarization: | Vertical |
Operating Voltage： | 3.0-5.0V |
Color： | Black |
Connector： | SMA male or customizable |

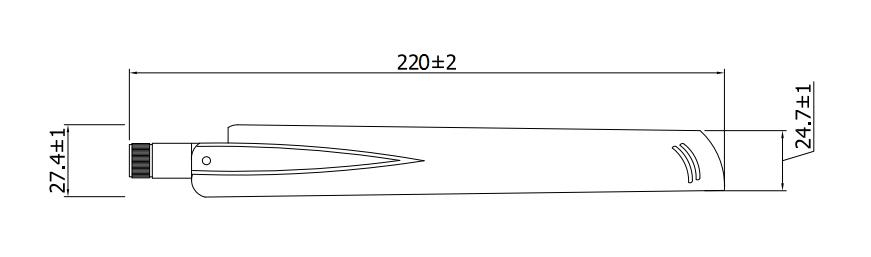

Antenna Dimension： | 220mm |
Operating Temperature: | -40℃~+80℃ |
Storage Temperature: | -40℃~+85℃ |
Environmentally Friendly: | ROHS Compliant |
Remarks: | Can be customized according to customers' request. |
Product name： | 5g full frequency rubber antenna 5g module antenna high gain omnidirectional smart home securi |
Brand Name： | Tech Chant |
Frequency Range： | 698-960/1710-2700/3300-3800/5125-5925MHz |
VSWR： | ≤2.5 |
Gain： | 4BD |
Impedance： | 50Ω |
Polarization: | Vertical |
Operating Voltage： | 3.0-5.0V |
Color： | Black |
Connector： | SMA male or customizable |
Antenna Dimension： | 220mm |
Operating Temperature: | -40℃~+80℃ |
Storage Temperature: | -40℃~+85℃ |
Environmentally Friendly: | ROHS Compliant |
Remarks: | Can be customized according to customers' request. |
